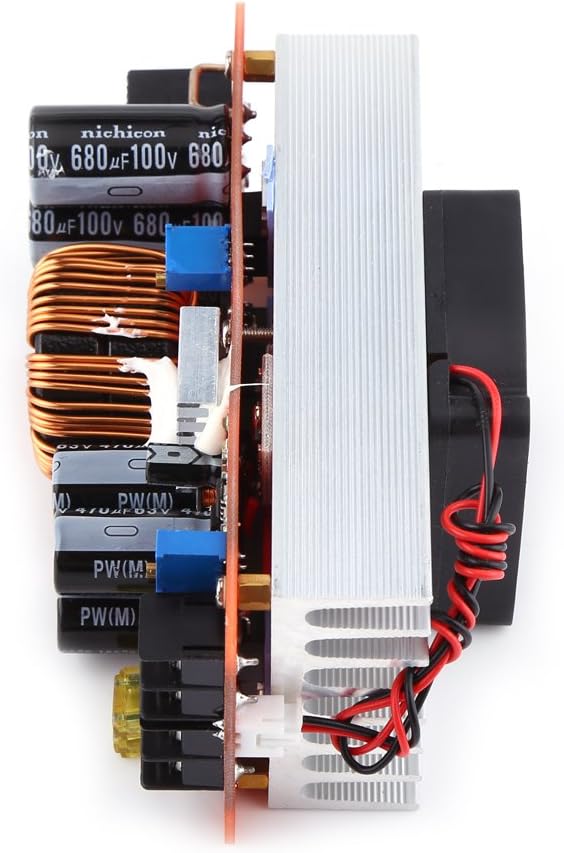

1500W 30A DC-DC Boost Converter Step-up Power Supply Module 10-60V Input 12-90V Output 130x84x52mm

Walfront 1500W 30A DC-DC Boost Converter DIY Step-up Boost Constant Stream Power Supply Module Board In 10-60V Out 12-90V Electric Unit Module Product Specification: Input Voltage: DC10V to 60V . Input Current: 30A(input voltage 10V to 30V) or 25A(input voltage 31V to 60V) Quiescent Current: 15mA(will increase when convert 12V to 20V) Output Voltage: 12V to 90V (adjustable, default is 19V) . Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A) Constant Current Range: 0.8A to 20A(+/-0.3A) Reverse Input : Yes (150A MOS) Lower Voltage : Yes (V8 to 50V adjustable, self-recovery) Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation) Frequency: 150KHz Conversion Efficiency: 92% to 97% Input Over-current : Yes (automatically when input is more than 35A, and power supply voltage will not increase) Short Circuit : Yes(input 30A ) Wiring Method: Terminals(please use large current copper wire) . Output Power = Input Voltage*Max Current (If input 12V, the output power=12V*30A = 360W) Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04" Package Includes: 1 x Module Note: 1. Output wiring can not be reversed or short circuit. 2. If the module is connected to inductive load, the minimum input voltage should be higher(e.g. 24V) and maximum output power should be lower(e.g. 500W). 3. If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage value should be adjusted lower, otherwise it might cause damage.

• Thickened heatsink and intelligent temperature control cooling fan dissipate heat better
• Input Voltage: DC10V to 60V; Output Voltage: 12V to 90V (adjustable, default is 19V);. Input Current: 30A(input voltage 10V to 30V) or 25A(input voltage 31V to 60V)
• The power supply module uses double sendust magnets winded with 1.2mm copper wires
• Support reverse input with MOS so there is no worry about wrong input wire and burn out power supply
• Low voltage will module and battery against damage from over-discharge when use a storage battery as input
